MMAC-11800
    • 1/2

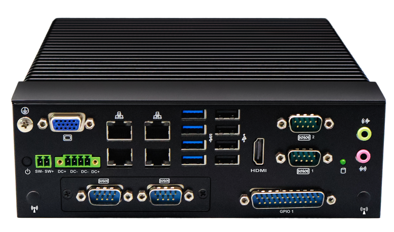

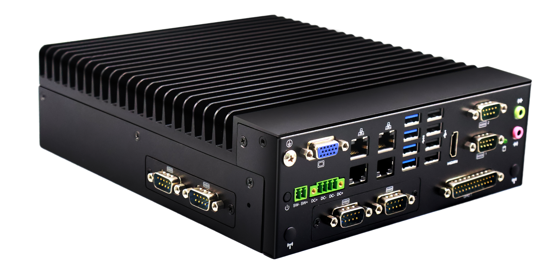

MMAC-11800

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
MMAC11800 is a computing platform that supports Windows 10, Linux, and Unix operating systems with excellent real-time performance, low power consumption, high performance, and strong environmental adaptability. It is widely used in Al platform computing, machine vision (such as automated inspection, automatic analysis and processing of solid image), automated production and testing, bank security monitoring system, intelligent building management system (IBMS), integrated security management system (ISMS), integrated traffic management system (ITMS), subway integrated monitoring system, smart classroom, home intelligent system, call center system, command and dispatch center of various industries, workstation monitoring system and other types of scenarios.
Product OverviewSpecificationOrdering Information

u   The whole machine adoptsclosed fan-less design, with copper pipe heat dissipation toobtain higher heat dissipation efficiency, with higher anti-magnetic dust,anti-corrosion, anti-radiation and anti-impact capabilities, suitable for harshindustrial environment.

u   Equipped with Intel Tiger Lake -U embeddedprocessor.

u   Equipped with Lynxi HM100 Al computing card (32TOPS), efficientAl processing capacity

u   Dual channel memory slot design allowsexpansion for higher memory capacity and response speed.

u   The machine adopts the design of four network ports, which can be applied tomore data communication environments.

u   With WIFI, Bluetooth, 3G/ 4G/ 5Gcommunication capabilities.

u   With 6*COM design, more data control communications equipment can be expanded.



Specification

Processor

CPU

Onboard Intel ®Celeron   6305 basic frequency1.8GHz 2 Core 2Threads 15W                       Onboard Intel ®Core   I3-1115G4   basic frequency3.0GHz   turboboost 4.1GHz   2 Core 4Threads   28W                                                                                                                                            Onboard   Intel ®Core I5-1135G7   basic   frequency2.4GHz turboboost 4.2GHz   4   Core 8Threads 28W                                                                                                                                             Onboard Intel   ®Core I7-1165G7   basic frequency2.8GHz   turboboost 4.7GHz   4 Core 8Threads 28W

Heat-dissipating Method

Passive Heat Dissipation

Chassis cooling fins for Heat dissipation

RAM


2*SO-DIMM DDR4 MAX 64GB UP to 3200MHz

Accelerator Card

AI card

SO-DIMM AI accelerator card(can be connected to   the Lynxi HM100 accelerator card, up to 32TOPS arithmetic power)

Storage

SATA

SATA 3.0（optional expansion of 2.5-inch hard disk）、Msata3.0(optional MPCIE SSD disk)

M.2

M.2 (PCIeX1 signal、optional 2280   M.2 hard disk )                                                                                          M.2(PCIeX4 signal、optional 2280M.2   hard disk, choose one of the two cards with the above Lynxi accelerator card)   optional hard disk capacity

Display

Display card

Integrated Graphics INTEL hypercore graphics card, dynamic frequency   1.25GHz&1.30GHz

Display Interface

HDMI(support 4K 60pHz), VGA, EDP_CON

Resolution Ratio

HDMI 4096X2160@60HZ

Audio

Main Control

Realtek HD Audio ALC897

Interface

line out(earphone) .MIC(microphone)

Wireless Communication

Type

MINI-PCIE extensible Wifi & Bluetooth or SIM+3G/4G/5G Module

Network Interface

Chip

4*Intel® Ethernet   Controller I225-V

Rate

100/1000/2500 Mbps

Interface

2*double RJ45(with tape shield)

I/O Interface

USB&COM

4*USB2.0(480Mbps)、4*USB3.0(10Gbps)、built-in 1*USB2.0(can be used to connect with the   Dongle),2*COM1/2(support RS-232、RS-422,RS485)+4*COM(RS-232), GPIO

System control and others

Key

Power Button, Reset Button

LED Indicator

PWR_LED, HDD_LED

Power Interface

DC Power

DC-IN 4Pin adpter support 12V-19V voltage input(default   is 12V/5A)

Chassis Parameter

Material

Steel

Color

Black

Size

232mm(L)*200.6mm(W)*68mm(H)

Weight

2kg

Environment

Operating Temperature

·-10℃ ~ 60℃

Operating Humidity

95%@60℃（non-condensing）

Watchdog

Output Interval

Suppor 0~255 second time out support

Operating System

OS

Windows、Linux、Unix
